● 用于电磁继电器和开关接点的保护，抑制接点的震颤和火花。
● Widely used for protecting contact points of magnetic relays,switches and for suppressing contact points chattering

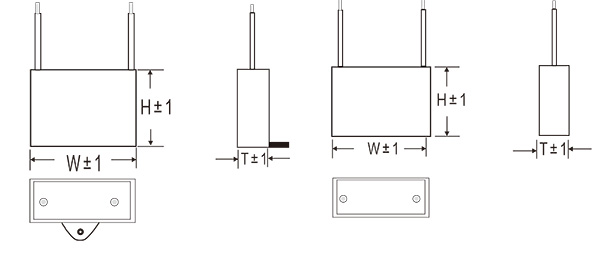

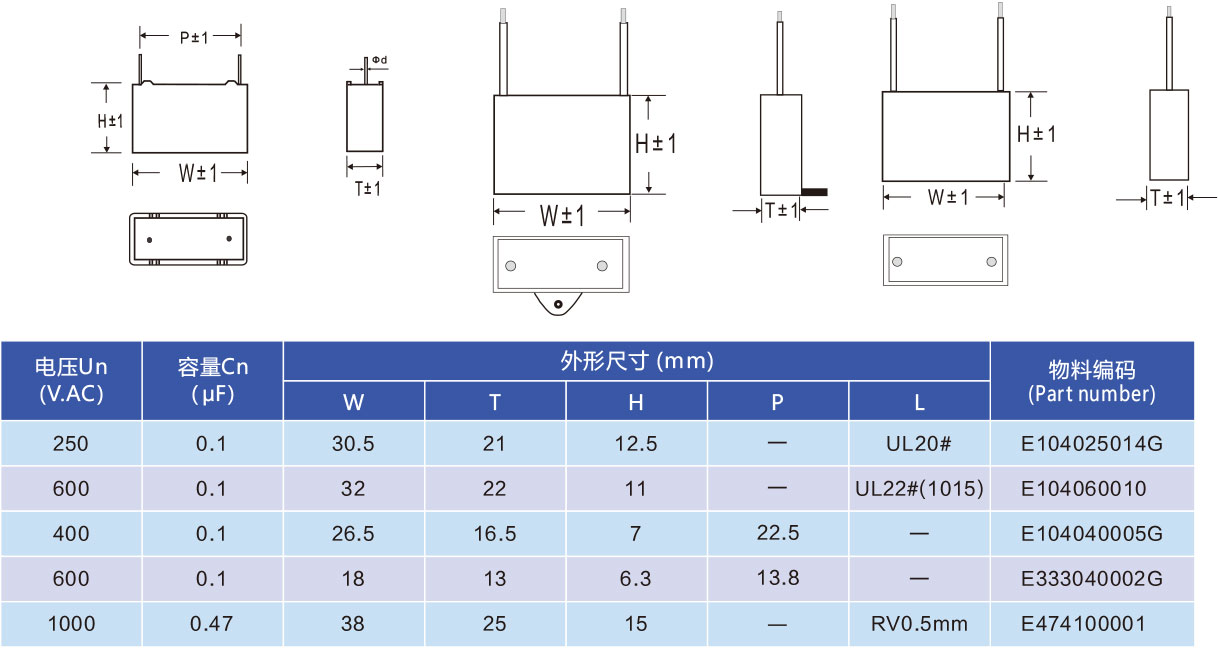

外形图及参考尺寸/Outline drawing
备注：详细规格清单及参数查询公司官方网站，或来电、邮件咨询。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries

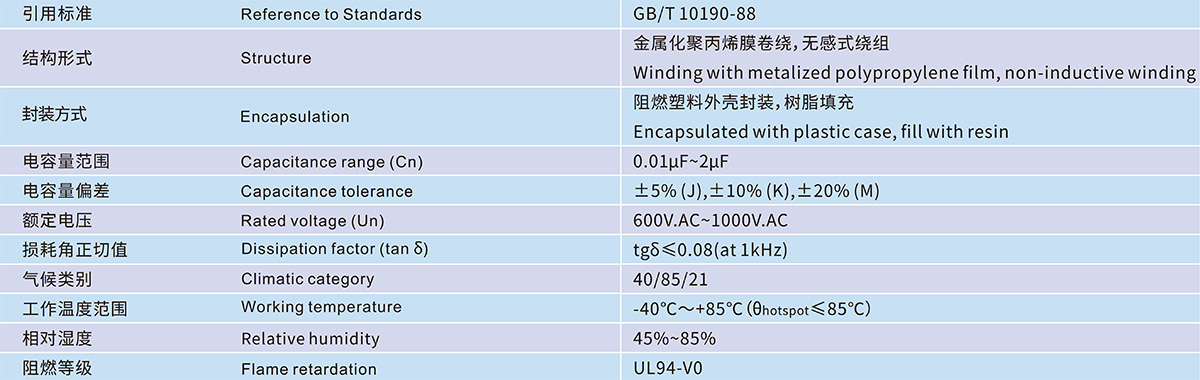

| 气候类别/Climate Category | 40/85/21 |
| 适用温度范围/Temp. Range | -40℃~+85℃ |
| 容量范围/Capacitance Range | 0.01μF~2μF |
| 额定电压/Rated Voltage | 250V.AC 400V.AC 1000V.AC |
| 容量偏差/Capacitance Tolerance | ±5% (J)、±10%(K)、±20%(M) |
| 损耗角正切/Dissipation Factor (tgδ) | tgδ≤0.01 (at 1kHz) |
| 绝缘电阻/Insulation Resistance | RS≥9000S MΩ( 23℃,1min) |
| 阻燃性/Flammability | UL94V-0级 |
| 耐电压/Withstand Voltage | 600~1000V.AC(10S) |
| 引用标准/Reference to Standard | 符合IEC384-14 GB/T10190-88 |
