Category：Resonance Capacitors
Resonance capacitor for induction cooker
Feature
Metallised polypropylene film wound, non-inductive structure, flame retardant metal and plastic housing package.
● Good frequency characteristics ● High temperature and high voltage resistance
● High insulation resistance ● Low loss
● Good self-healing properties
  • Details
  • More

Applications

●Widely use in high voltage and high frequencypulse circuit

●used in electronic ballasts and energy-savinglamps

●Snubber and SCR rectifier circuits

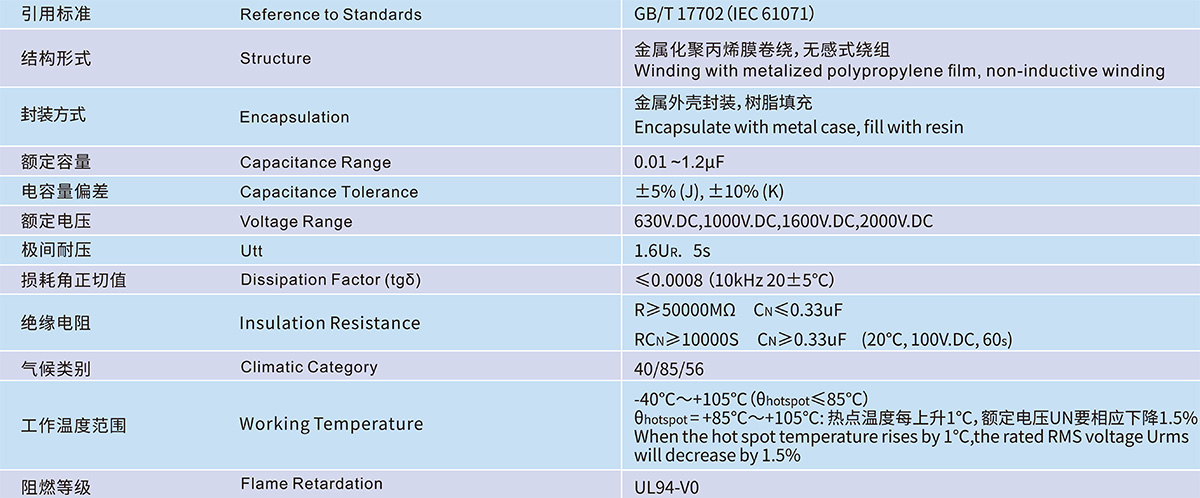

Technical data

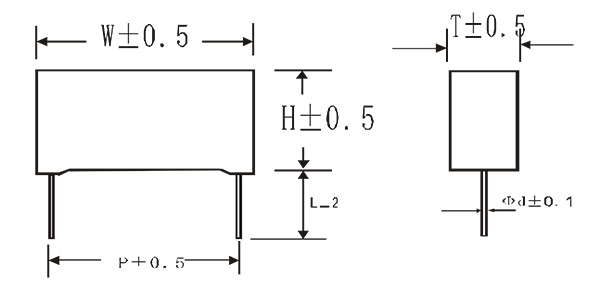

Outline drawing

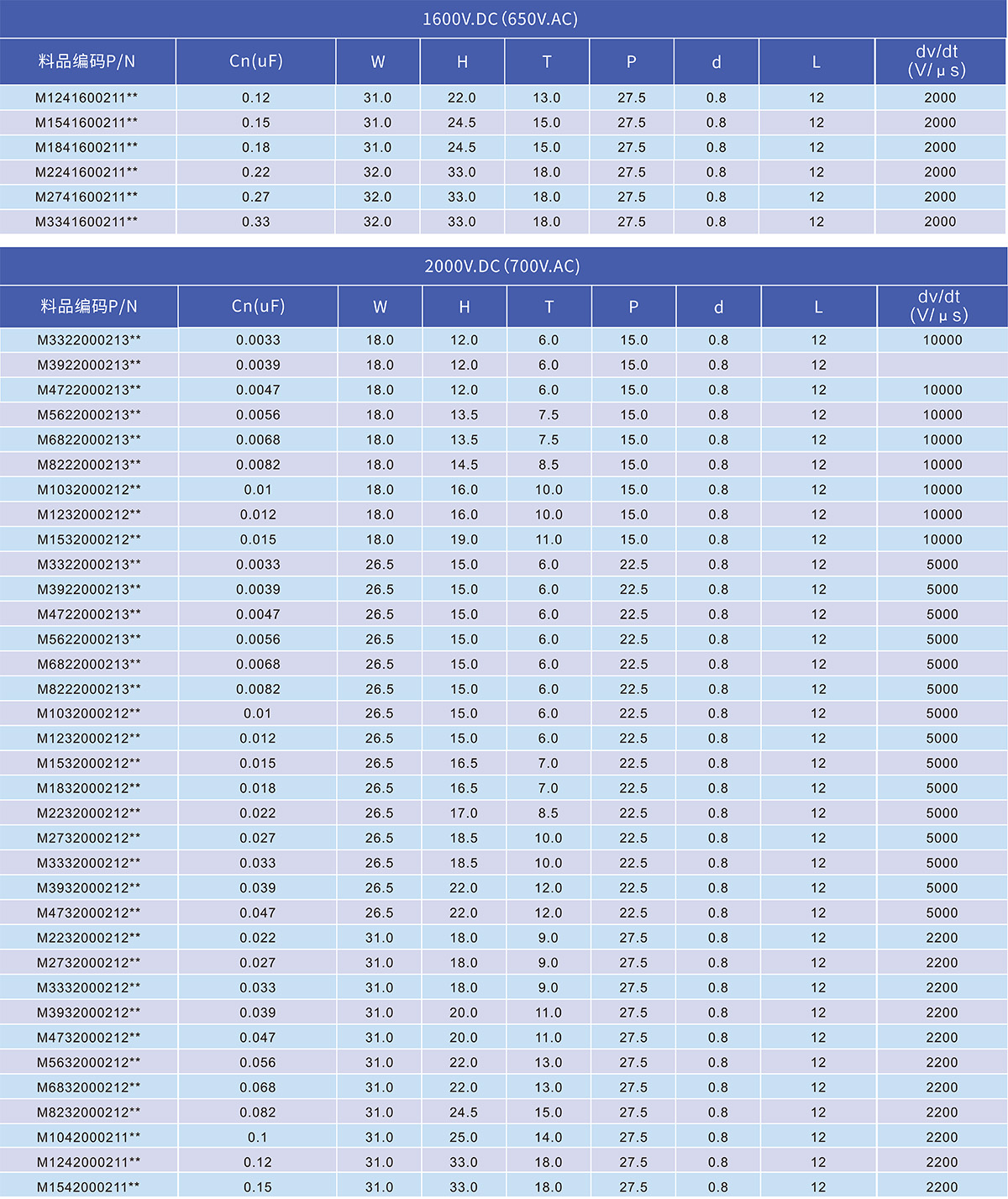

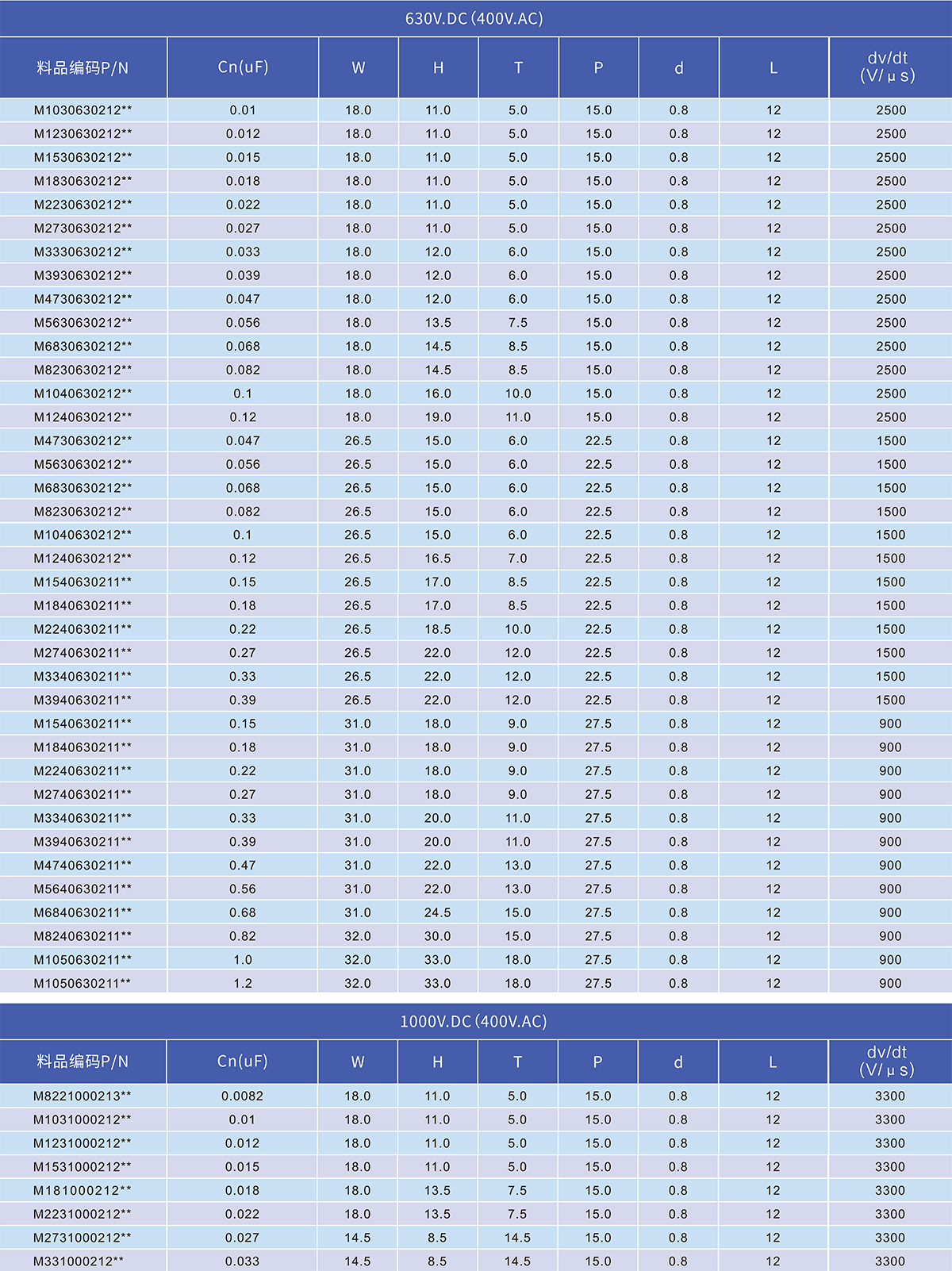

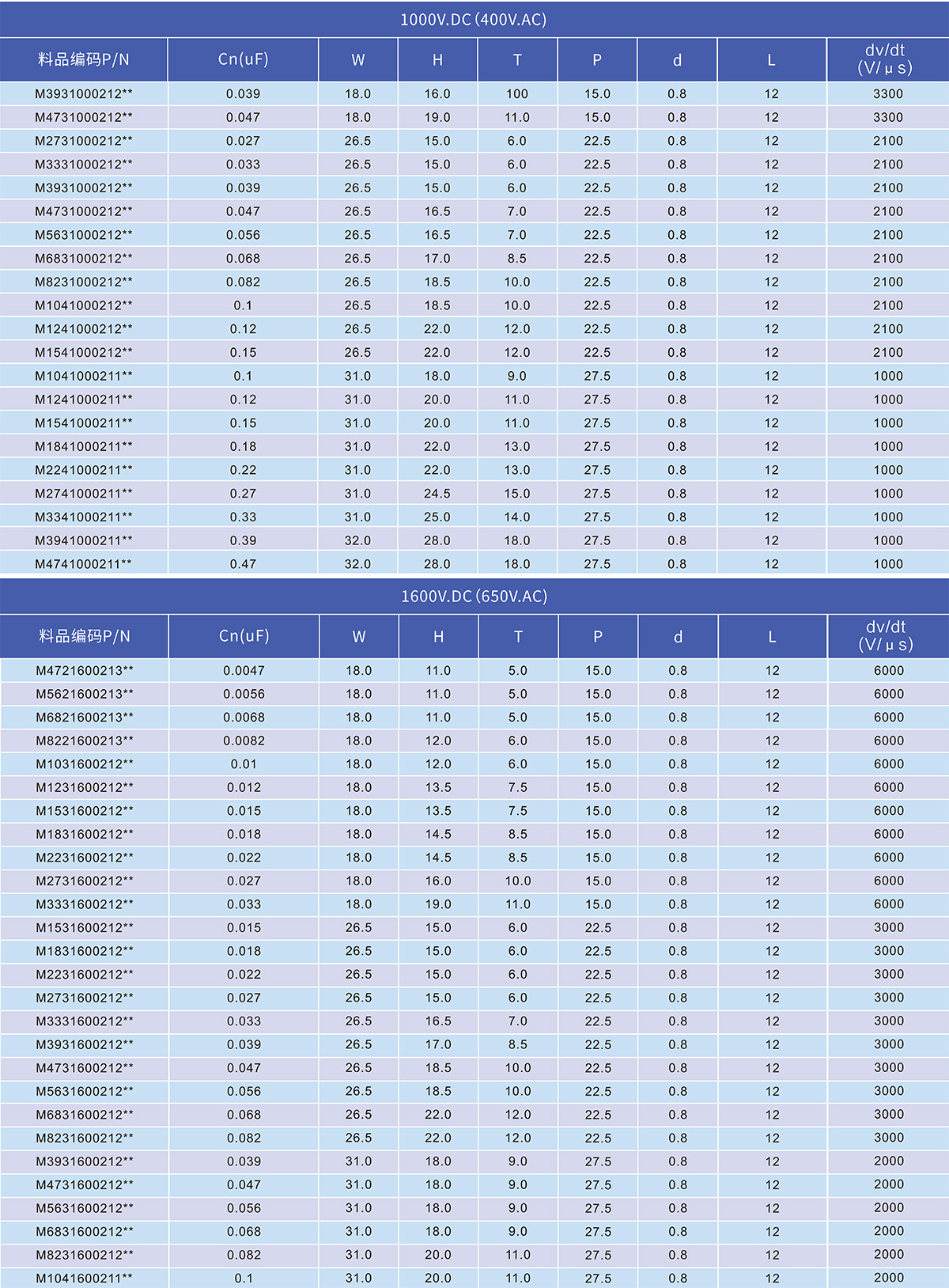

Product datas




Note:

lt should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.

Other capacitances, voltages and dimensions are available on request.

Detailed specifications list and parameters query company official website,or call, email inquiries.
