水冷式金属化薄膜高压谐振电容器(超音频)
特点/ Feature
● 耐压高,电流大,寿命长;
● 容量搭配灵活,体积小,安装方便。
  • 案例详情
  • 更多内容

应用场合/ Applications

● 大功率超音频感应加热设备的谐振电路。

● Used in the induction heating resonant circuit system for high power & superaudio.

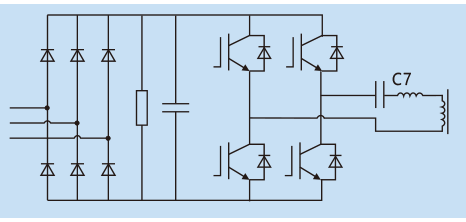

典型线路图/ Typical circuit


外形图及参考尺寸/Outline drawing

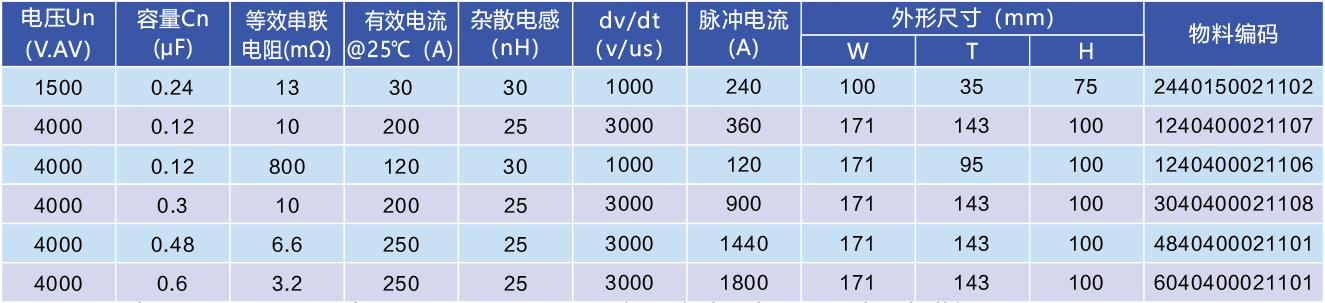

备注:详细规格清单及参数查询公司官方网站,或来电、邮件咨询。

 Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries


性能指标/ Technical data

引用标准/Reference to StandardGB/T17702
结构形式/Structure

水冷式

 Water cooling type

封装方式/Encapsulation

银色铝外壳,白色环氧

 Sillver colour, Aluminum case, White epoxy resin

容量范围/Capacitance Range0.06~0.6μF
容量允许偏差/Capacitance Tolerance±5% (J),±10% (K)
电压范围/Voltage Range300V.AC~4000V.AC
极间耐压/Utt1.5Un(DC)/10S
损耗角/Dissipation Factor (tgδ)tgδ≤0.0006 (at 1kHz)
绝缘电阻/Insulation ResistanceRi≥15000MΩ (at 20℃ 100V.DC 60s)
气候类别/Climate Category40/85/21
工作温度范围/Working Temperature-40℃~85℃
储存温度范围/Storage Tempearture-40℃~85℃
使用海拔/Altitude<2000m
最大电极扭矩/Max ElectrodeTorqueM6:3N.m 参照IEC61881
预期寿命/Expected life time100000h
阻燃性/FlammabilityUL94v-0
失效率/Failure Rate30FIT

备注:如果海拔使用高度超过了2000m,应该考虑海拔对流冷却和外绝缘的影响。

Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.
